N300668 - A120UD71LLI550

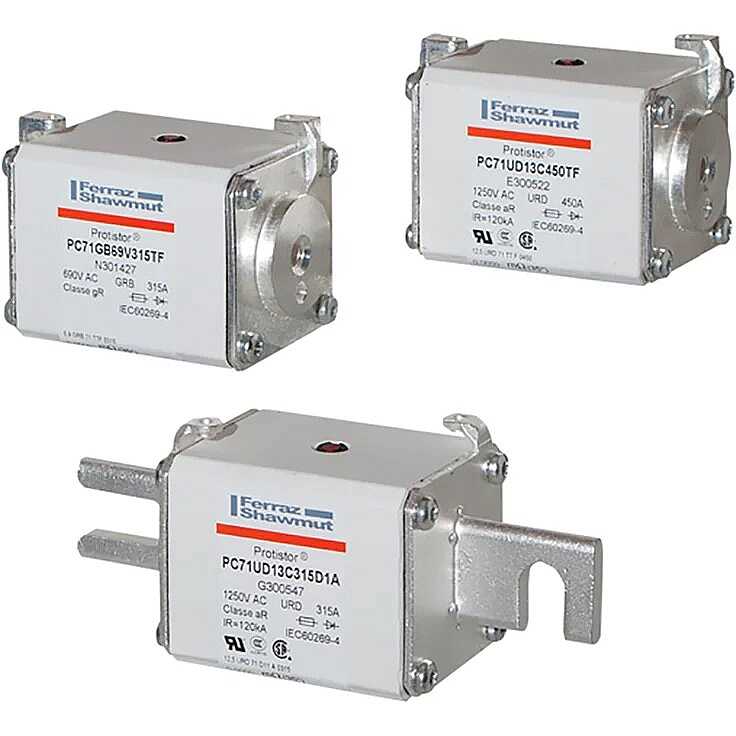

Series: Protistor® size 71 aR, 750 to 1250VAC (IEC) / 1300VAC (UL) Square Body High-Speed Fuse Protistor® Size 71 aR 1100VAC IEC 1200VAC UL 550A With Striker Slotted Blades long These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
