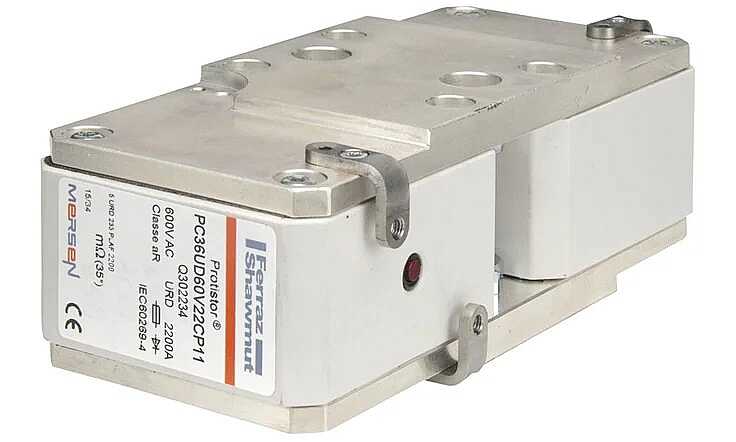

Q302234 - PC36UD60V22CP11

Series: Protistor® size 2x32 and 2x33 aR, 400 to 690VAC (IEC) / 700VAC (UL) Square Body High-Speed Fuse Protistor® Size 2x33 aR 600VAC IEC 650VAC UL 2200A With Striker Plates with Metric Threaded Holes The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These square body ultra-fast acting aR fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
