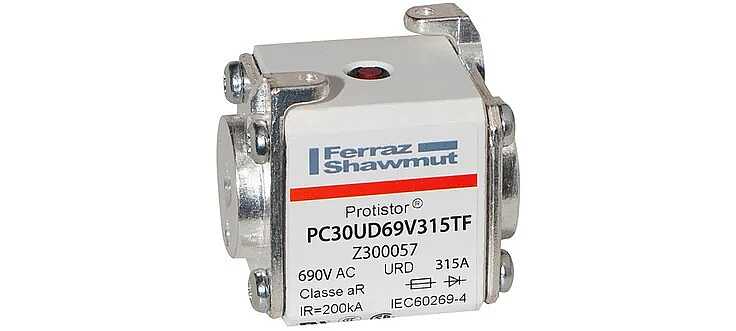

Z300057 - PC30UD69V315TF

Series: Protistor® size 30 aR, 600 - 690VAC (IEC) / 700VAC (UL) Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 315A With Striker Flush ends metric threads The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
